CONSTRUCTION OF 4600mAh POWER BANK
BY
OBANDE JOSEPH .B. :D141EE039
ALI SULIYAT IYABODE :DI41EE002
BEING A FINAL YEAR PROJECT SUBMITTED TO THE DEPARTMENT OF ELECTRICAL AND ELECTRONIC ENGINEERING,
THE POLYTECHNIC, ILE IFE, OSUN STATE.
IN PARTIAL FULFILLMENT OF THE REQUIREMENTS FOR THE AWARD OF NATIONAL DIPLOMA IN ELECTRICAL AND ELECTRONIC ENGINEERING.
UNDER THE SUPERVISION:
OF
ENGR. DR, D.O EXCELLENCE
JUNE, 2015
CERTIFICATION
This is to certify that the project work titled “CONSTRUCTION OF 4600mA POWER BANK” was done by OBANDE JOSEPH BENEDICT (D141EE039) AND ALI SULIYAT IYABODE (D141EEO22) of the Electrical and Electronic Engineering department under my supervision.
I hereby recommend it for academic advancement.
_________________ ________________
Engr. Excellence, D.O Date
Supervisor
_________________ _________________
Engr. Olatunbosun, M.E Date
Head of Department
ACKNOWLEDGEMENT
All Glory be unto God Almighty for making it possible for us to gain admission for the first path of education (ND) in this able institution (THE POLYTECHNIC, ILE IFE) and who have made us scaled through the hardship and tough time. He has been by our side from the first day we step our foot on this great institution. We give all our appreciation to you Almighty God.
We acknowledge with great gratitude to our humble and well respected supervisor, the person of ENGR DR D.O EXCELLENCE for his tireless help and effort. We pray that God will increase his strength.
And also to the effort of our HOD & lecturers ENGR. M.E OLATUNBOSUN, MR ADEDOYIN AKOLADE, I pray that God almighty will reward their hard work. we thank you all for your support throughout this program and we pray that our wonderful and blessed savior will never leave nor forsake you rather He will always continue to meet you at the point of all your needs.
And also we appreciate the effort of MR. KAREEM AYODEJI, for his effort and attention giving to us during the project works, he has been a source of knowledge during the practical. And it is our prayers that God will not forsake him, He will continue to provide for all his needs. We can’t forget the impact of MR UTHMAN BADRUDEEN.
Also to our family; MR & MRS. OBANDE BENEDICT, MR. EMMANUEL OBANDE, MR PETER NKEM, MR CLEMENT OBANDE, and MR & MRS ALLI, MISS FOLASHADE ALLI, MR ALFRED we say a big thanks to you all.
Finally, we appreciate all our course mates and the entire staffs of The Polytechnic, Ile Ife for their assistance, love and understanding towards the successful completion of our National Diploma program. We say a big thank you all.
DEDICATION
The project is dedicated to GOD Almighty for making it possible for the completion of this final year project work which is really a very big challenge to us.
Also for making it possible for the successful completion of this National Diploma (ND) program in The Polytechnic, Ile Ife in peace, healthiness and for the great achievement that we cannot mention.
And also to our great parent for their caring, who have passion for education, who also led us through the right path. And also for their moral, financial and spiritual support giving to us during and after this final year project.
We pray that they will reap the fruit of their labour in JESUS name. Amen.
I pray that they will, live long to witness our greatness. Amen.
Finally we want to dedicate this final year project work to all our friends for their advice during our time in school. Thank you all.
ABSTRACT
This project involves the construction of 4600mAh power bank, it consists of three different modules which are; power storage module, battery charging module and phone charging module. All these modules consist of different circuit in other to perform their main functions.
The power storage module consist of pen batteries of 1.2V with 4600mAh current rating which are all connected in series in other to increase the battery voltage from 1.2V to 10.2V require to power the phone charging circuit.
The battery charging module is responsible for the restoration of energy to the power storage module (battery) after it has been used to charge mobile phones.
In other to ensure that the device is portable to be carry all around, the battery charging module (i.e. battery charger) has been isolated from the circuit, therefore it has reduced the bulky component from the device (power bank) and there is connecting port between the power charging module and the power bank (power storage & phone charging module) through which it can be connected in other to recharge the battery.
CHAPTER ONE
INTRODUCTION
Power bank are portable device comprised of a special circuit that control power flow. They allow the storage of electrical energy (i.e. deposit it into the battery bank) and then later use it to charge any mobile device (i.e. withdrawn it from the battery bank).
Power bank is also called “plug in battery, external battery and charging battery” of the digital products. Its definition is convenient and easy to carry large-capacity portable power. Power bank can simple be define as a power storage/energy reservoir for a secondary cell or a rechargeable battery. It is a third party charger that offers power to your mobile phone when the need arises.
Power banks have become increasingly popular as the battery life of phones, tablets and portable media player is outstripped by the amount of time we spend using them each day. By keeping a battery backup close by, you top up your device(s) while far from a wall outlet. Power banks are good for almost any USB-charged devices. Cameras, MP3 player, mobile phones, tablets etc. as long the power bank is charged. Most commonly power bank will have a dedicated input sockets for receiving power. This power can come from a USB sockets on your computer, but may charge faster when using a wall socket adapter. In most rare occasions , power bank can use the same socket for input and output, but this is rare and should not be assumed of any power bank, as trying to force power into an output can damage the battery.
With the rapid development of global economy, people continued to carry more portable electronic products, as mentioned earlier, which are drained or discharged as a result of longtime uses.
Therefore power bank provides the means of recharging then without the needs of waiting for electric power supply be restored. Power bank are of different size and capacities e.g. 200mAh, 3300mAh, 4600mAh etc.
1.1 SIGNIFICANCE OF THE PROJECT
The power bank is an electronic device which produces electric energy for consumption when charge, it is an external charging battery for mobile phones.
The benefit of these design include;
Charging of mobile phone when it runs out of battery.
It is portable, is neither heavy nor inconvenient to carry.
It has a multiple socket for all kinds of phone.
It can charge all kinds of phone.
It can run for several hours and keeps feeding mobile phones.
The power bank is a very affordable tool.
1.2 AIMS AND OBJECTIVE
This design (Power bank) is an electronic device aimed at achieving the following;
To construct a power bank that will be able to charge all types of mobile phone devices.
A device that is capable of supplying 4600mAh current.
A device with short circuit protection.
A power bank that as over- charging protection.
A device that the battery is rechargeable.
1.3 SCOPE AND LIMITATION
This project is the design and construction of 4600mAh power bank for use in residential homes, commercial homes, offices etc, to charge mobile phones.
The limitation of these design is that it can only be used for the charging of mobile phone device and it should not in any case used to charge other high current consumption device such as laptops, car batteries etc.
CHAPTER TWO
LITERATURE REVIEW
2.1 BACKGROUND OF STUDY
Power bank charging equipment specifically designed for the mobile phones of majority of large power consumption. This device is suitable for the system on all smart phones, such as iOS, Androids, Blackberry OS and Symbian.
With an increased number of features, mobile devices like smart phones, tablets etc are requiring more power. To extend their operating life, manufacturing try to use bigger batteries but are limited because of the weight and size. To provide users additional power when their devices are running low, many users are learning to relay upon power banks, a portable energy source that can be carried in a pocket or backpack. Power banks store energy in an internal lithium Ion battery and can charge the mobile devices.
2.2 HISTORY OF POWER BANK
Power bank previously known as mobile power which comes into existence between (2001 –2003) as a result of student carrying out practical knowledge on providing another means of charging their cell phones.
Mobile power (power bank) is essentially a charger, and it first appeared in Lasvegas International Consumer Electronics Show in 2001, a student pieced a control circuit with a few AA batteries representing the portable external battery charger officially born.
The formation stage of the concept of market (2004-2006): victories put a large amount of money to launch the engine compartment named mobile power, and this event marked the untimely the early throes and started their own prototype mobile power by only product concept info the market concept stage.
The slow market development stage (2006-2009): the representative event was that some capable of manufacturing enterprises entered the field of mobile power production, which means that mobile power has finally established its market image as a new product, thereby going into the track of normal development, and to see the growth rate of the steady expansion of market capacity.
It became globally recognized in 2004 when some electronic companies produce it as a special product.
2.3 MARKET GROWTH PHASE
The popularity of power bank began in 2009, during this period, the domestic e-commerce rises (i.e. its sales) and also the rise of smart phones marks the event that gradually establishes the product.
A land mark event from slow growth to the rapid growth was in 2007 when Apple introduced the Iphone (a style product design, with powerful software features and high power consumption). Power bank has made a lot of impacts both on economy and people that went on vacation or tourism so as to keep their mobile device working for longer period of time.
CHAPTER THREE
3.0 METHODOLOGY:
The power bank system consists of three different modules; charging module, power storage module, and mobile charging module, this are represented in the block diagram as shown below:
3.1 CHARGING MODULE
Charging Module consists of all the components required to ensure that the battery (power storage) were recharged after it has been drained or discharged in the process of mobile phone charging.

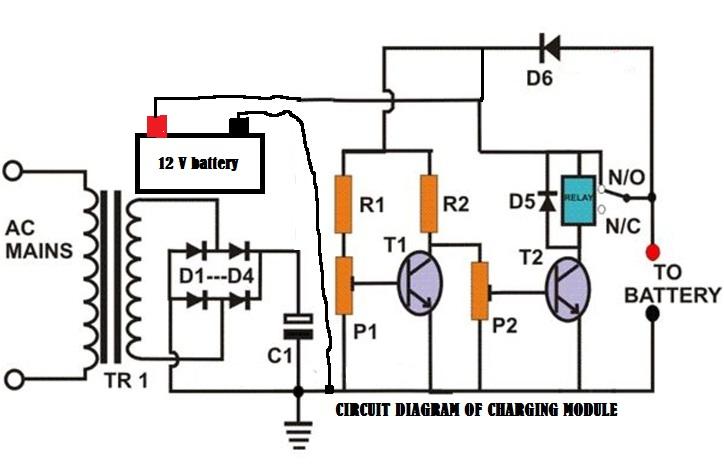

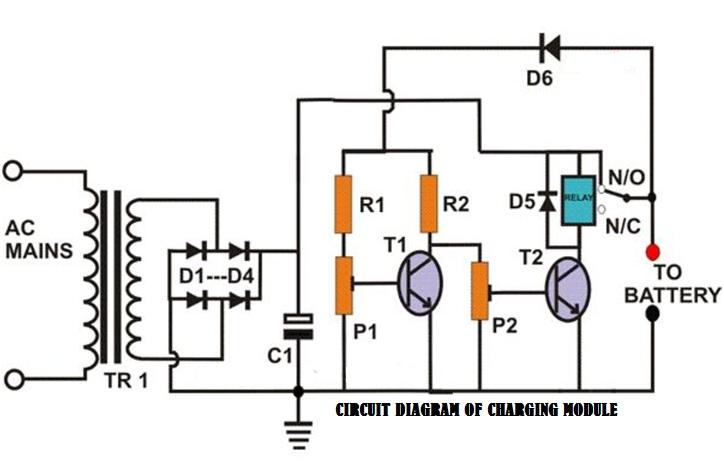

This module contain circuit diagram which responsible to ensure the automatic charging so as to prevent the battery from being over charged.

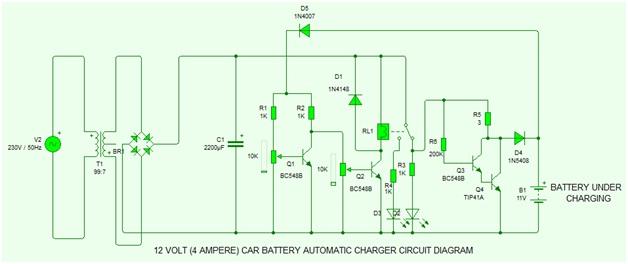

3.1.1 CIRCUIT OPERATION OF CHARGING MODULE
Transformer TR1 is a step down transformer that convert the 230V AC supply to 12V AC supply at its output, diode D1...D4 (i.e. D1, D2, D3 & D4) are rectification diode which convert 12V AC (Alternating Current) supply to full wave rectified DC (Direct Current) supply, capacitor C1 is an electrolytic filtering capacitor which remove any AC ripples present in the rectified DC voltage output.
Resistor R1 is of a fixed resistance value which is used as a smoothing resistance for the Potentiometer P1 (variable resistor) which bias the Base terminal of the transistor T1, resistor R2 is a load or collector resistance for transistor T1 and also as a smoothing resistor for the potentiometer P2 which also supply the biasing current to the base terminal of transistor T2.
Transistor T1 and T2 are NPN bipolar junction transistors (BJT), the two transistors are used to power the relay switch so as to control the charging of the battery. The DC rectified output is connected directly to the common terminal of the relay switch and it is also used as a positive power supply for the relay switch. The battery positive terminal is connected to normal open(NO) of the relay switch so that when the battery voltage fall below the setting value the relay is triggered and thereby change it to normal close (NC) and the battery start charging.
Diode D5 is a protecting diode that prevents back flow of electric current as a result of instantaneous tripping on and off of the relay switch coil which induces brief increase of voltage when tripping off and the diode which is reversely connected across the relay switch power terminal allow the voltage to drain out slowly. Diode D6 prevents back flow of electric current to the battery.
3.1.2. SETTINGS OF THE CHARGING WINDOW FOR THE BATTERY
To ensure that the battery is prevented from being over charged, the range/window at which the battery is to start charging and stop charging need to be set and this is done by disconnect the DC rectified output from the circuit and used the battery at its fully charged condition to serve as input to the circuit (when the transformer has been removed) and also connection was made between the negative terminal of the Diode D6 and the relay switch terminal.
The Potentiometer P1 and P2 are set to certain equal range, P2 is used to set the maximum charging voltage of the circuit and it is varied or tuned till the relay switch trip ON while P1 is used to set the lowest or minimum charging voltage and varied until the relay switch also trip OFF therefore the operating window for charging has been set.
After this setting the battery is removed and connects the circuit back to normal wirings.
3.2 POWER STORAGE MODULE
This consists of rechargeable pen batteries (AAA size), each of the battery has current capacity of 4600mAH with voltage of 1.2 volts and they are all arranged in series to give the required voltage of 12V for the Mobile charging module.
+ve-ve
This battery is recharge by the charging module when it is drained or discharged as a result of long time use.
3.3. MOBILE CHARGING MODULE

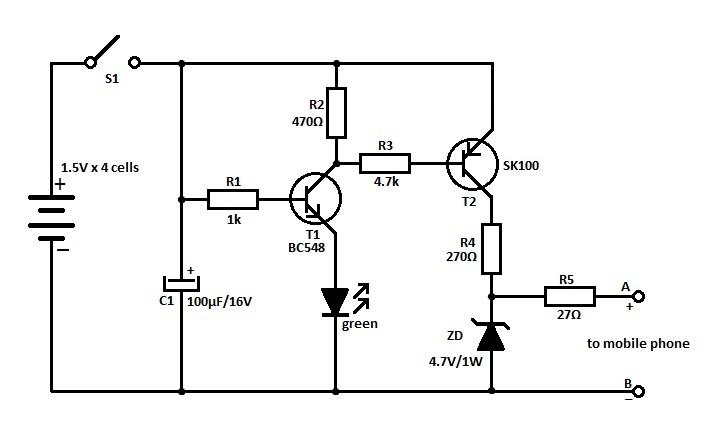

This module consists of the circuit responsible for the controlling of the current required to charge the mobile device to its full capacity. It gets its power supply directly from the power storage module. It has 40mA charging current at its output.
When power is applied to the circuit through S1, transistor T1 conducts and green the LED lights. When T1 conducts T2 also conducts since its base becomes negative. Charging current flows from the collector of T1, in other to reduce the charging voltage to 4.7 volts, a Zener diode D2 is used. R1 is the base biasing resistor for transistor T1, capacitor C1 filters ripples or noise that may present in the circuit, R2 is the load resistor for transistor T1 and which also determines the collector current output, R3 is biasing resistor for transistor T2 (PNP), R4 is the output load resistance and current limiting resistor for Zener diode while R5 is the limiting resistor to the mobile phone charging point.
3.4 LIST OF MATERIAL USED
3.4.1 EQUIPMENT USED
Breadboard.
Soldering iron.
Lead
Plier
Cutter
Wire stripler
Desoldering pump
Electrician knife
Earthing clip.
USB connector
Vero board.
Battery casing
Pattrex casing
Bolt & nut screw
Terminal connector.
3.4.2 COMPONENT USED
Transformer.
Diode
Resistor
Capacitor
Relay
Zener diode
Variable resistor
LED
Battery
On/Off switch.
3.4.3 COMPONENT DESCRIPTION
Below are the descriptions of the component used in this project work with their respective circuit symbols.
4.1.1 Transformer: This is used to step down the 230V AC power to 15V AC power supply. There are two types; step down transformer and step up transformer. It has input as primary winding and output as secondary winding.
Two coils of wire linked by an iron core. Transformers are used to step up (increase) and step down (decrease) AC voltages. Energy is transferred between the coils by the magnetic field in the core. There is no electrical connection between the coils.
4.1.2 Diode (1N4007, 1N4148): A device which only allows current to flow in one direction, 1N4007 is rectification diode which does the conversion of AC supply DC supply while 1N4148 is mainly used as a protecting diode.
AnodeCathode
4.1.3 Capacitor: There two types; electrolytic and non-polarized, capacitor stores electric charge. This type must be connected the correct way round. A capacitor is used with a resistor in a timing circuit. It can also be used as a filter, to block AC signals but pass DC signals.
Electrolytic or polarized capacitor Non-polarized capacitor
4.1.4 Resistor: There are two types; fixed and variable resistor, they are mainly used to limit the flow of current to any other component or devices.
Fixed resistor Variable resistor
4.1.5 Transistor: Transistor amplifies current. It can be used with other components to make an amplifier or switching circuit. There are two types; NPN and PNP.
PNP NPN
4.1.6 Zener diode: Is a special diode which is used to maintain a fixed voltage across its terminals. It is reversely connected in other to act as a voltage regulator but when it is forward bias it act as a normal diodes.
AnodeCathode
CHAPTER FOUR
4.0 IMPLEMENTATION, TESTING AND EVALUATION.
4.1 IMPLEMENTATION
After the different modules (charging module, Power storage and Mobile charging module) had been constructed and tested for normal working condition they were enclosed in a plastic casing as shown in the subsequent pictures below.

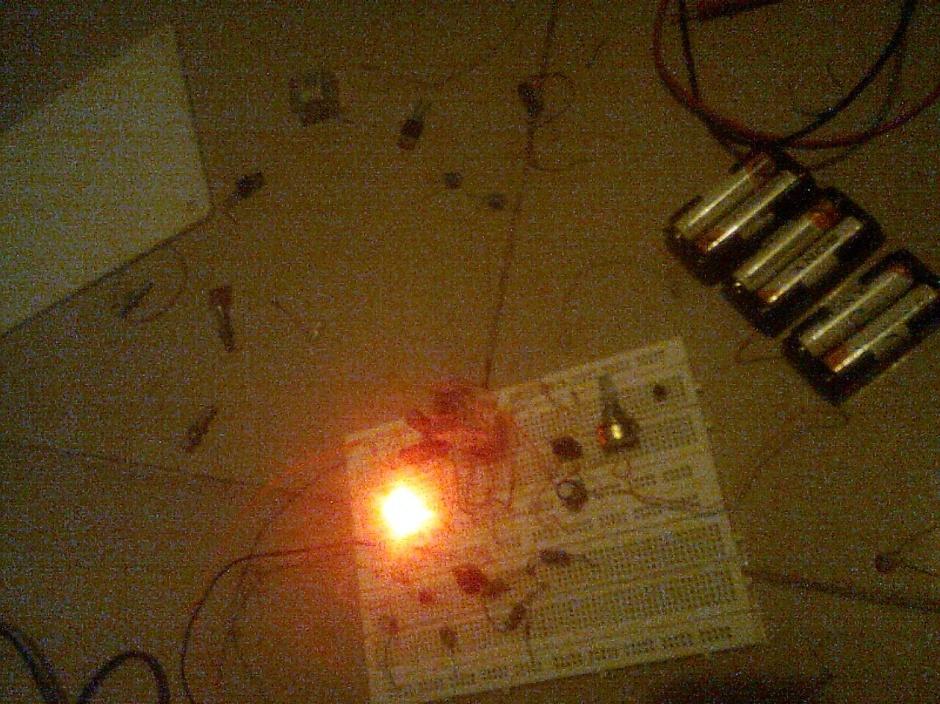

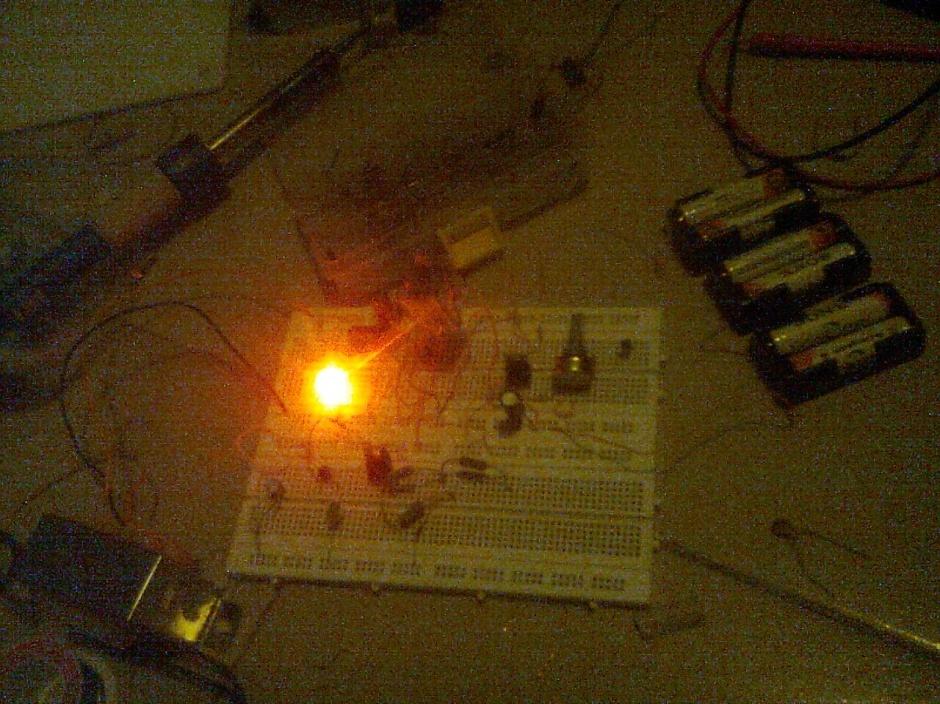

Picture during construction

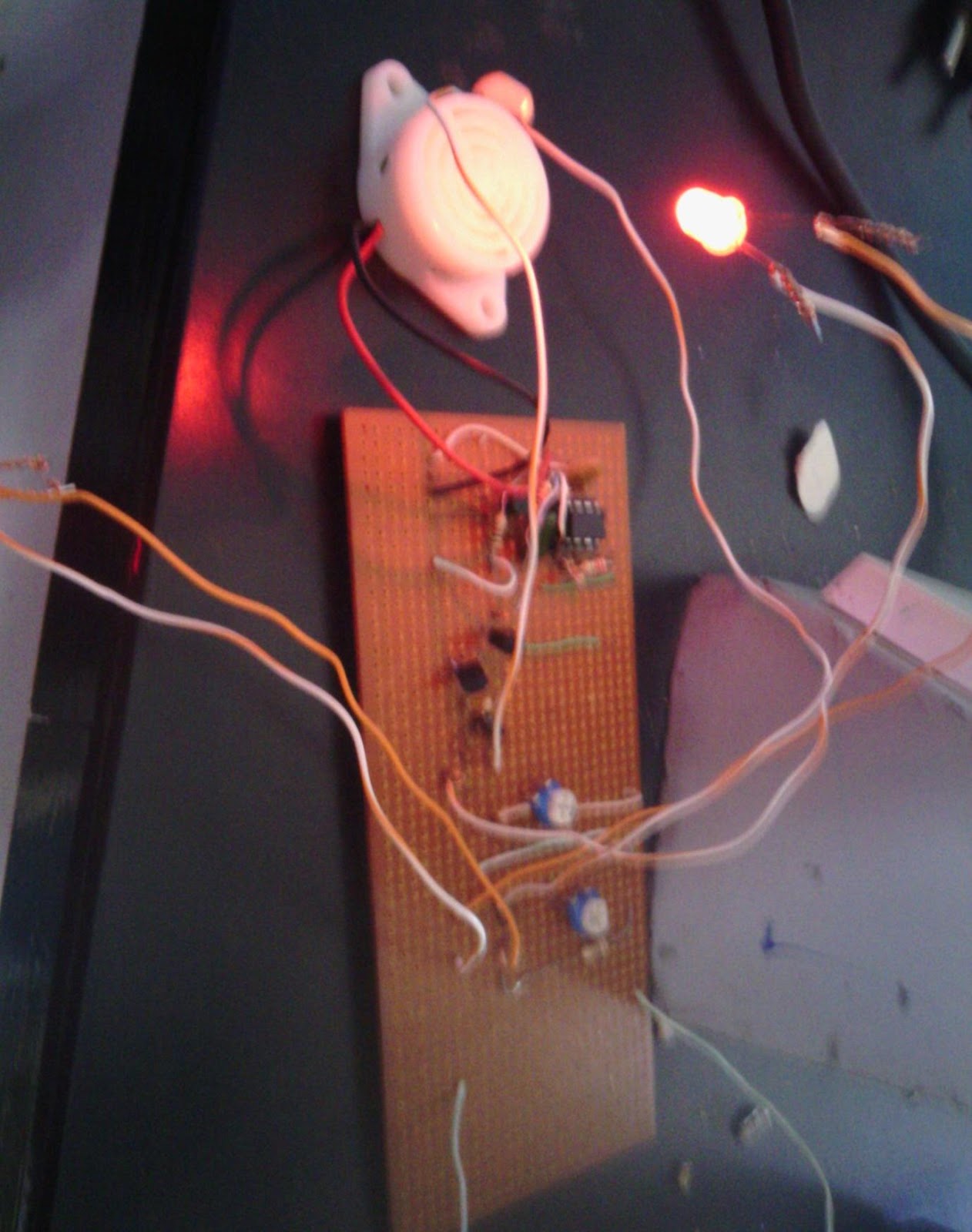

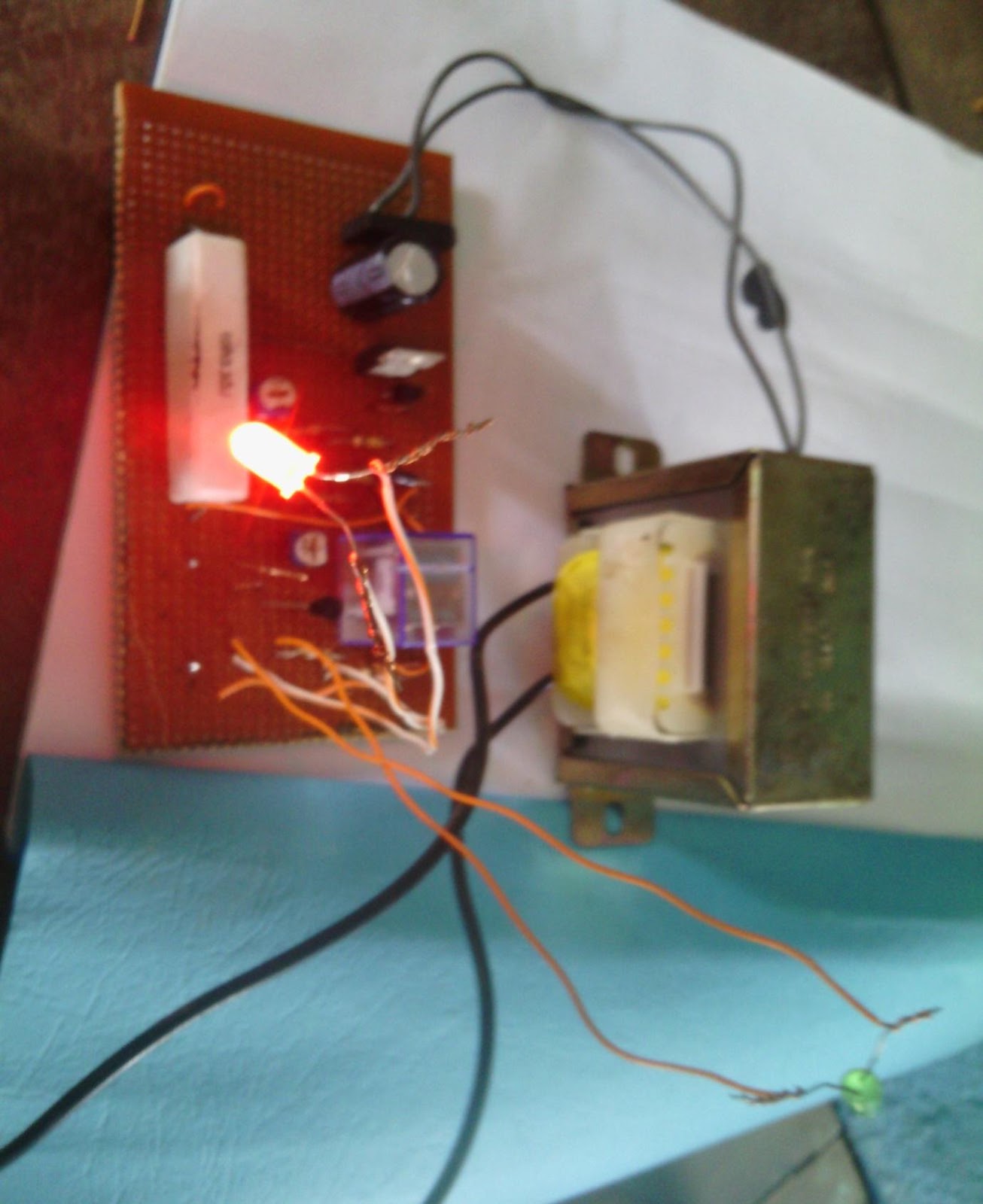

Picture during construction and soldering

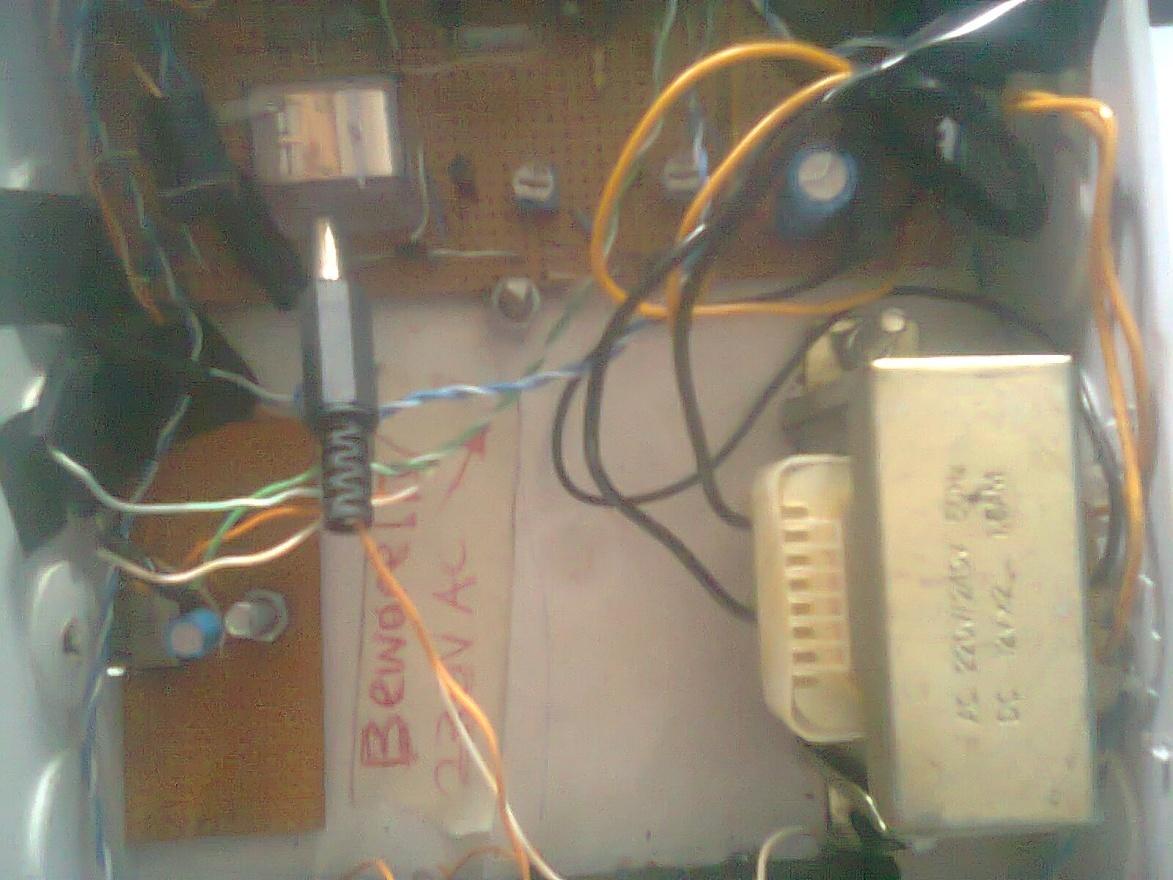

Picture of the different modules

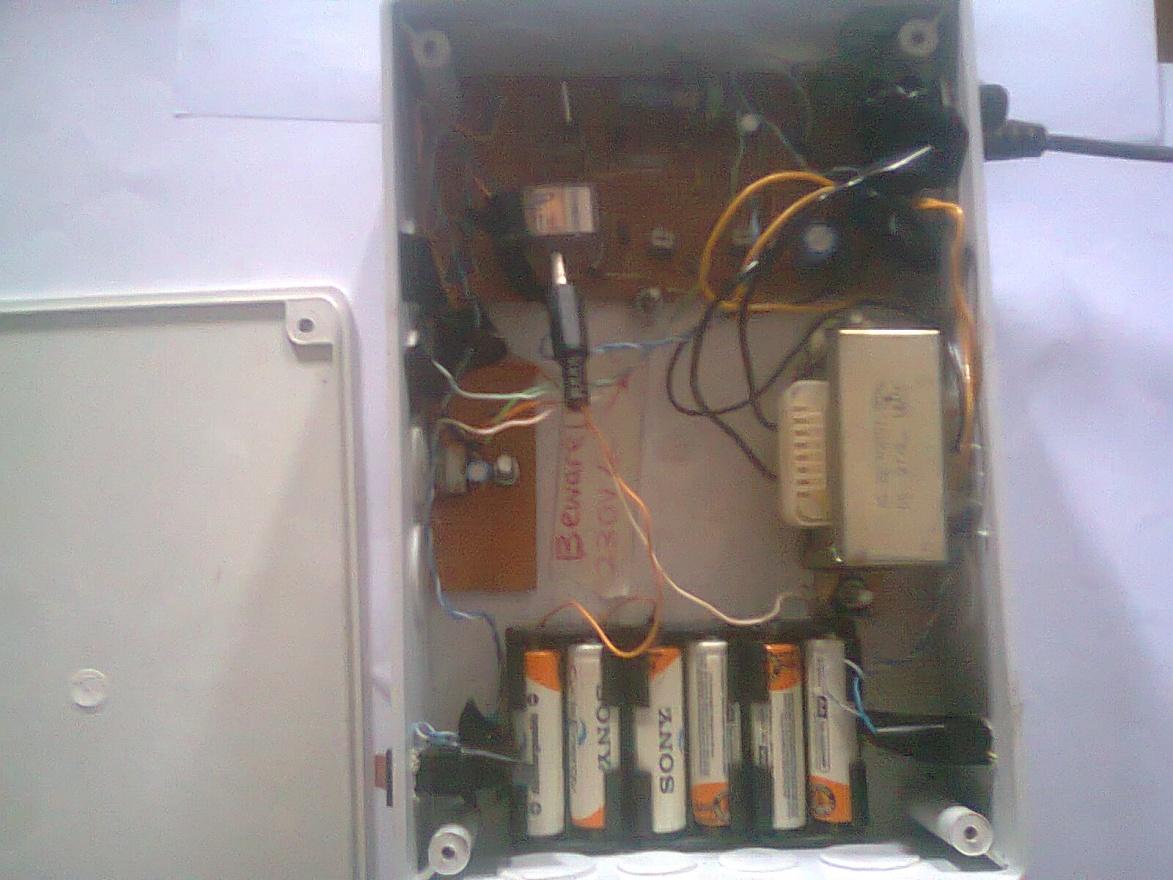

Enclosed plastic case with charging indicators and switch
4.2 TESTING & RESULT
When the power supply plug is connected to the 240V AC supply and the power switch is turn ON the red indicator lights up showing that electricity has been supplied to the circuit and the battery charging module start charging the battery when the battery has fully charged the relay will trip off thereby preventing the battery from being over charged.
The power bank has USB connector interface through which the mobile device can be connected for charging when the phone charging module is turned ON.
The power bank has the ability to charge two mobile devices at the same time
After the overall construction the device (Power bank) was allowed to charge for some times in other to restore the battery to its fully charged level.
4.3 COST EVALUATION AND ANALYSIS
4.3.1 COST ANALYSIS OF COMPONENTS AND MATERIALS USED
CHAPTER FIVE
5.0. CONCLUSION RECOMMENDATION AND REFERENCES
5.1. CONCLUSION
Power bank has made a lot of impact both on human’s life as a result of the fact that people find it difficult to do away with their mobile devices switch off or drained out while they are away from their home or offices or which can be as a result of outage or interrupted AC power supply.
It has also improved the economy tremendously as more people buy it as a necessity for the purpose of charging their mobile devices.
5.2. RECOMMENDATION
This project is recommended for use in office or at any locations for the charging of mobile devices when there is interruption of electric power supply and should not in any case use to charge high consuming devices like laptop computer
5.3. REFERENCES
5.3.1. S.CHAND, (2009). Basic electronics textbook: definition of components, page 105.
5.3.2. www.circuitstoday.com,
5.3.3. www.diy.com
